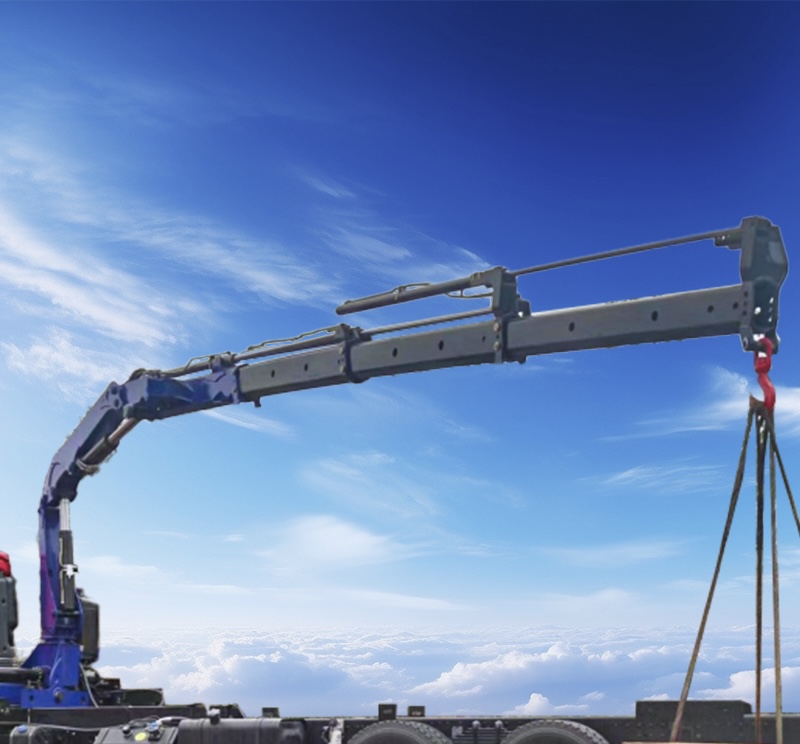

1. 4-link Walvoll single-control valve manifolds control outrigger operating motions;
2. Vertical outriggers can be manually swung up; hydraulically driven horizontal outriggers;
3. Rack and pinion driven slewing mechanism with a maximum slewing angle of 400°;
4. The two-arm luffing cylinders with bidirectional counterbalance valves; standard fixing kit (with oil pump, drive shaft, etc.Not suitable for high pressure filter and radiator).
| Product Parameter | ||
| Item | Unit | JTK125-3S |
| Max Lifting Moment | kNm | 135 |
| Max Working Range | m | 10.3 |
| First-Arm Angle(Max Moment) | ° | 25 |
| EN12999 Working Type | H1-B3 | |
| Max Dynamic Load Moment | kNm | 191 |
| Slewing Moment | kNm | 24 |
| Max Off-Load Angle | ° | 5 |
| Slewing Angle | ° | 400 |
| Outtrigger Span | mm | 5780 |
| Max.support reaction of landing gear | kN | 68 |
| Max Flow of Main Valve | 1/min | 25 |
| Max Pressure of Main Valve | Mpa | 34 |
| Minimun Power Required | kW | 40 |
| Oil Tank Capacity | L | 75 |
| Input Voltage | V | 24/12DC |
| Crane Weight | Kg | 2000 |
| Crane Height | m | 2.295 |
| Crane Width | m | 2.495 |
| Hydraulic oil weight | Kg | 70 |
| Amount of Tie Rods | 8 | |
| Tie Rods Size | M24X2 | |
| Material of Tie Rods | 42CrMo Slack quench | |
| Tightening torque of Tie Rod | Nm | 400 |
