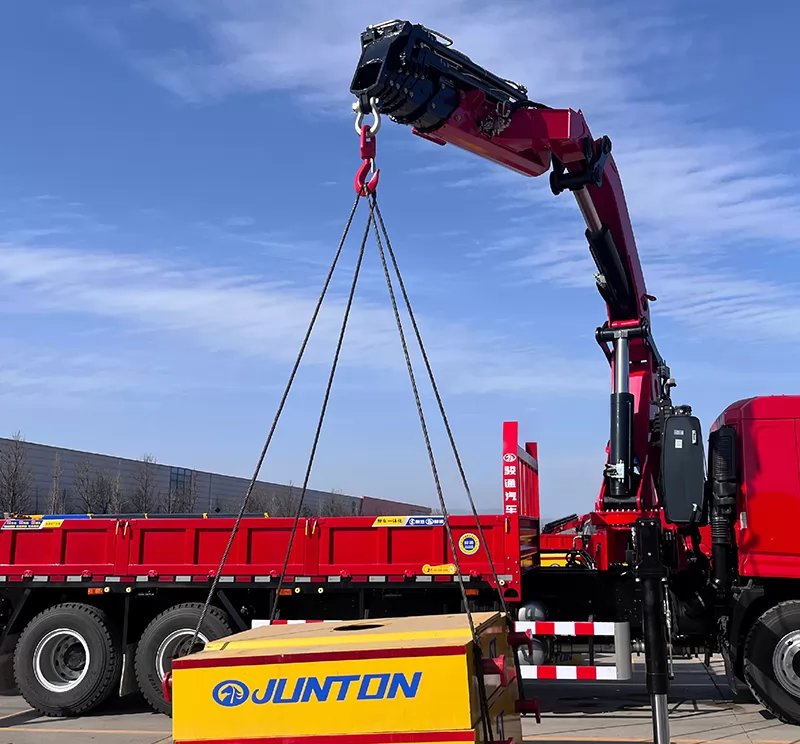

1. Double reducer drive rotation mechanism and quadruple Danfoss HPCO proportional valve.Scanreco remote control outrigger and crane.
2. Equipped with torque limiter and SCS outrigger stabilization system.
3. Hydraulic oil tank + 20Kw radiator is placed on the base.
4. Vertical outrigger fixed installation, outrigger oil pipe externally.
5. Equipped with 22T hook with bearing and optional 5-meter-span auxiliary outriggers.
| Product Parameter | ||
| Item | Unit | JTK515-6S |
| Max Lifting Moment | kNm | 440 |
| Max Working Range | m | 16.8 |
| First-Arm Angle(Max Moment) | ° | 20 |
| EN12999 Working Type | H1-B3 | |
| Max Dynamic Load Moment | kNm | 600 |
| Slewing Moment | kNm | 50 |
| Max Off-Load Angle | ° | 5 |
| Slewing Angle | ° | 360 |
| Outtrigger Span | mm | 7810 |
| Max.support reaction of landing gear | kN | 184 |
| Max Flow of Main Valve | 1/min | 80 |
| Max Pressure of Main Valve | Mpa | 34 |
| Minimun Power Required | kW | 52 |
| Oil Tank Capacity | L | 240 |
| Input Voltage | V | 24/12DC |
| Crane Weight | Kg | 5850 |
| Crane Height | m | 2.468 |
| Crane Width | m | 2.550 |
| Hydraulic oil weight | Kg | 220 |
| Amount of Tie Rods | 8 | |
| Tie Rods Size | M36X3 | |
| Material of Tie Rods | 42CrMo Slack quench | |
| Tightening torque of Tie Rod | Nm | 1500 |
